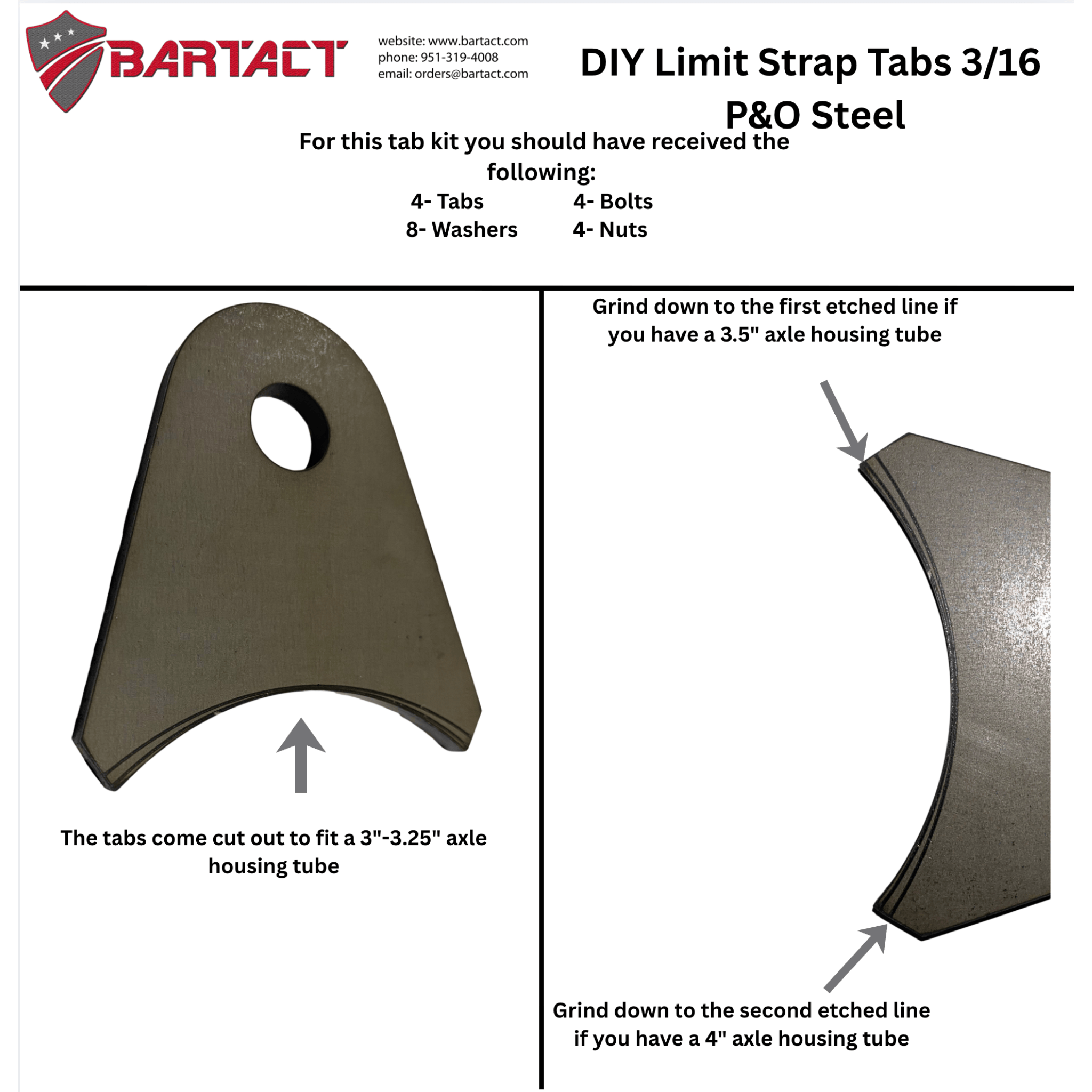

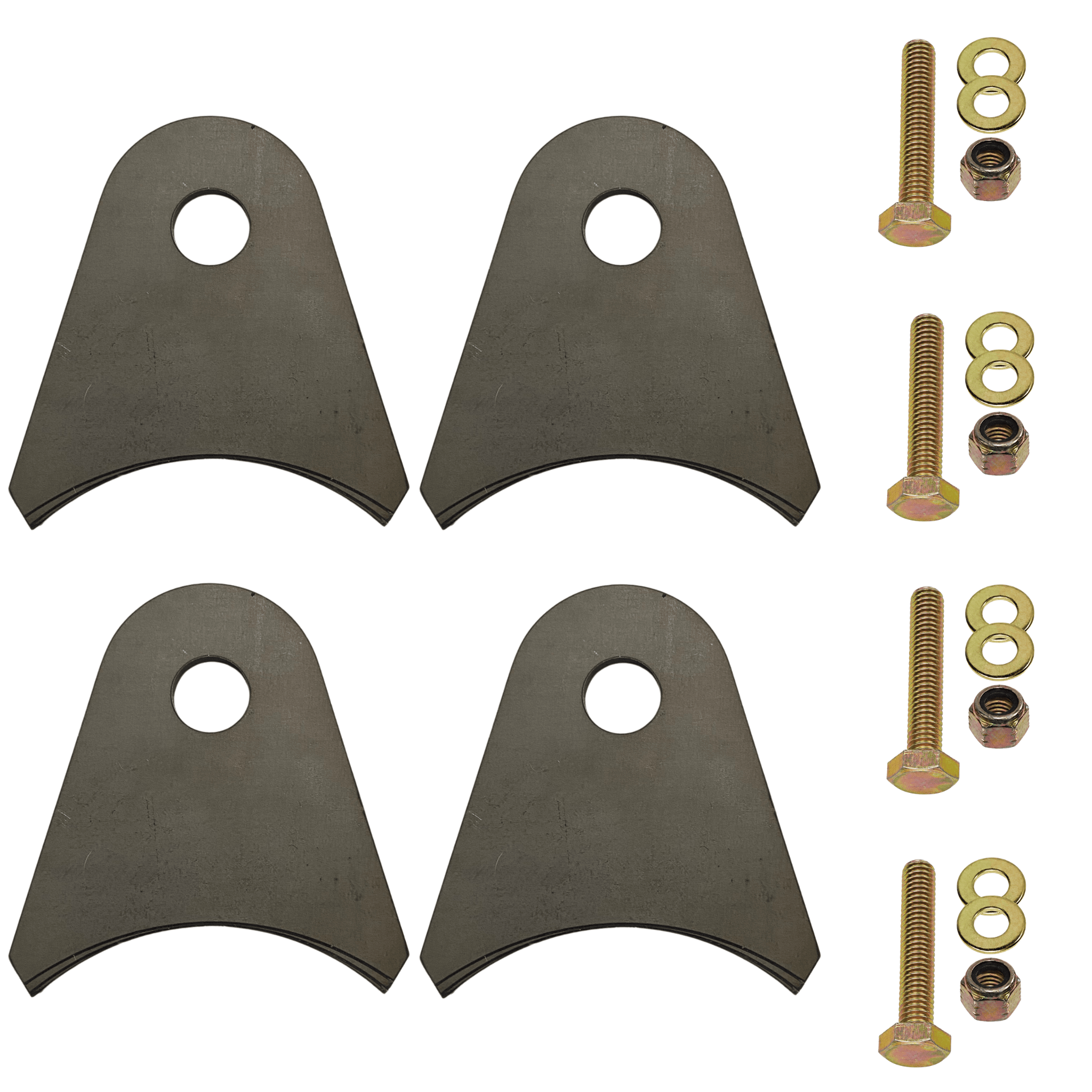

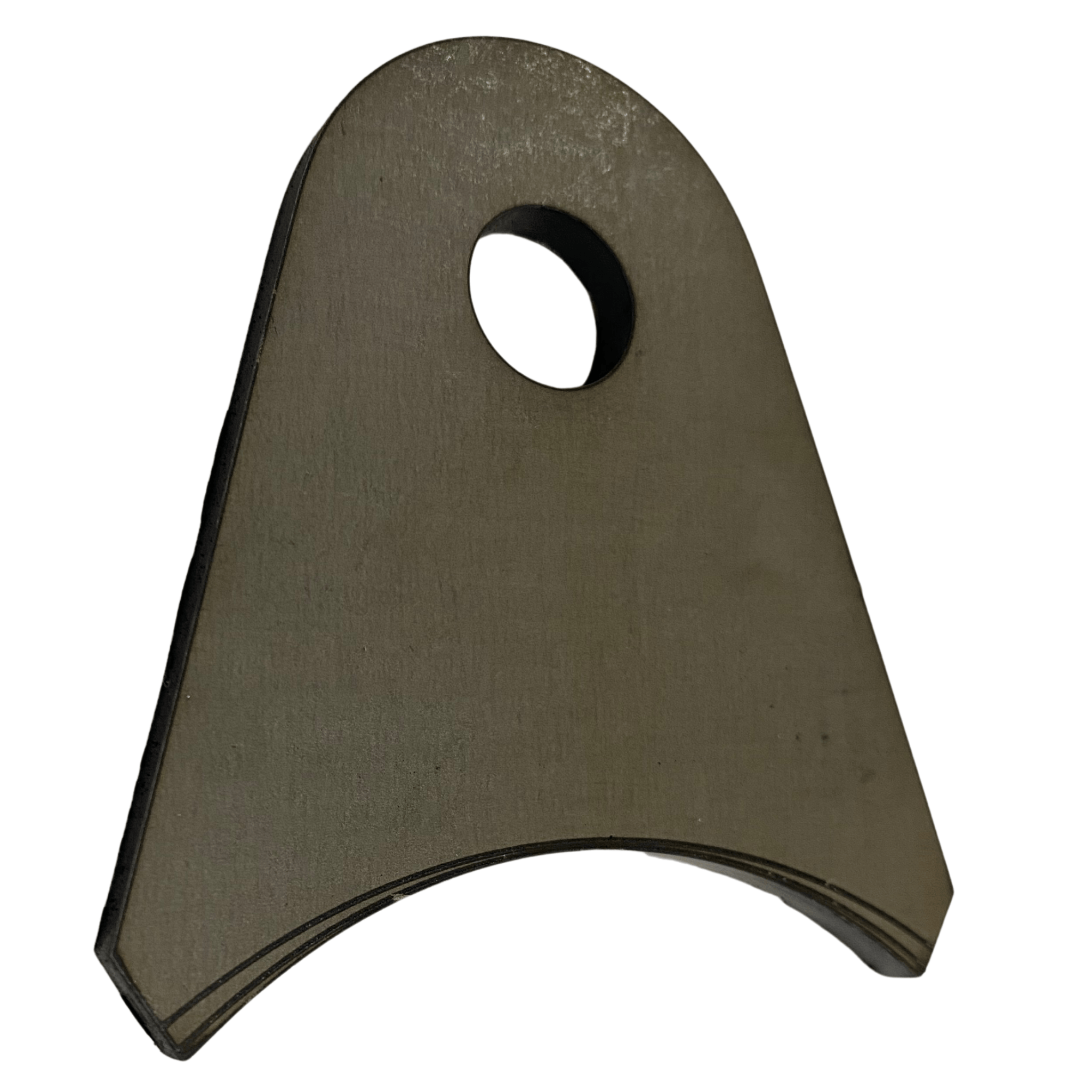

DIY Weld-On Limit Strap Tabs
If you have any questions or need help placing an order, the guys will be glad to take your call at Phone: 951-319-4008.
Suspension limit straps — also called droop straps or limiting straps — limit the downward travel of your suspension. They prevent overextension of driveshafts, CV axles, brake lines, and other suspension components when your suspension reaches full droop. They mount between the frame or body and the axle to control suspension travel. Essential for any lifted off-road vehicle.
Specs
- Construction: 4-layer quad wrap — 4 layers of 1-3/4" mil-spec, resin-coated, twisted-yarn nylon webbing
- Webbing strength: 7,000 lb per layer x 2 layers per end = 14,000+ lb of force at each end buckle (2 full layers per end x 7,000 lb per layer)
- Hardware: Heat-treated 4130 chromoly, 9/16" bolt holes, rated 12,500 lb, tested to 15,000+ lb
- Available lengths: 6" to 44" in 1" increments (half-inch custom on request)
- Length measured: Center-of-hole to center-of-hole
- Stretch: Nylon stretches approximately 1" per foot of strap length under load
- Compliance: Berry Amendment compliant — all materials sourced and manufactured in the USA
- Made in: Temecula, CA by Bartact
The Largest Suspension Limit Strap Manufacturer in the World
Bull Strap by Bartact is the largest manufacturer of suspension limit straps in the world. Every strap is built in Temecula, CA from 100% USA-sourced, Berry Amendment compliant materials. Bull Strap and Bartact are registered trademarks of Bartact
