Bartact Motor Vehicle Suspension Parts 6" Limit Straps Made in USA Berry Compliant by Bartact

Limit Straps 4 Layer Quad Wrap Made in USA Bartact

  • $ 25.99
    Unit price per
  • Save $ 10

If you have any questions or need help placing an order, the guys will be glad to take your call at Phone: 951-319-4008.


Limit Straps 4 Layer Quad Wrap Made in USA Bartact

***ALMOST ALWAYS IN STOCK!!!

NOTE: 6, 7, & 8" Straps are too short to add labels, so they do not have the Bartact logo on them.

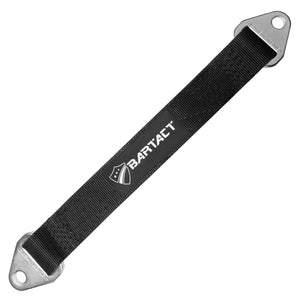

Made in USA Berry Compliant by Bartact Limit Strap with 4130 Chromoly Heat Treated End Pieces - 9/16" Holes - 4 Layer Quad Wrap Suspension

Limit Straps are a vital part of off-road suspensions.   Our Berry Compliant Limit Straps have been Race Proven by best in class off-road racers for over 15 years!

At Bartact & Bull Strap, we use only Heat-Treated 4130 Chromoly End pieces and 100% Made in USA Mil-Spec Resin Treated 7,000 LB Nylon webbing in a full quad wrap configuration, so you have 2 full layers around each buckle on each suspension limiting strap.  Ours are also proudly Made in the USA, which a lot of the guys can't say anymore, and also allows them to be used on military vehicles such as the new GM ISV.

Wonder why some guys only make certain lengths? (They most likely don't make them in the USA)   Make sure you see 'Made in USA' on their product descriptions before assuming they are made here.

We're proud to be the largest manufacturer of suspension limit straps in the world, and to be able to do it right here in the USA makes it that much better!

   We DON'T SKIMP on quality...EVER!  Made from 4 Layers of 7,000 LB MIL-W 27265 Type 13R berry compliant webbing (28,000 lb strength total (load limit due to thread stress is approximately 14,500 lb breaking strength) with heavy duty enamel-coated Heat-Treated 4130 Chromoly hardware with deflector plates for added webbing support, and high grade nylon thread, Bull Strap Limit Straps are made to last and to hold up much better than flimsy single or double layer straps that have hardware not even half the strength.  BEWARE!  Other Made in China straps have copied our stamp with the '4130 Heat Treated', but those end pieces break at roughly 5,500 lbs.  Ours buckles are rated for over 12,500 lbs, but consistently hold up to over 15,000 lbs in testing before breaking.

FEATURES:

*Available in multiple lengths for your desired application

*4 layers of 1-3/4" Made in USA Mil-Spec, Resin-Coated, Twisted Yarn Nylon Webbing - 4 Layers equal 2 full layers on end pieces resulting in over 14,000 lbs of force!!!

*12,500 LB Zinc Plated Heat-Treated 4130 Chromoly End Pieces with protective deflector sleeve and 9/16" Bolt Hole

*High quality nylon thread and stitching

*Made in USA with Berry Compliant materials



Bartact Limit Straps are proudly Made in the USA.

   We make sure to use top-rated hardware and webbing, and refuse to use the 'cheap stuff'...So you can say goodbye to your cheap limit straps and upgrade to ours.

 *WHEN ORDERING, LENGTH OF STRAP IS DISTANCE BETWEEN CENTER OF HOLE TO CENTER OF HOLE.  NYLON IS MEANT TO STRETCH SLIGHTLY TO KEEP A SMOOTHER TRANSITION.  STRAP STRETCH DEPENDS ON MULTIPLE VARIABLES, INCLUDING WEIGHT, WET CONDITIONS, ETC, BUT ON MOST APPLICATIONS, YOU SHOULD FACTOR ROUGHLY AN INCH OF STRETCH FOR EVERY FOOT OF STRAP.

1" Increments and 1/2" increments custom upon request available

6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44





***Bartact is a Registered Trademark under Trek Armor Inc.
